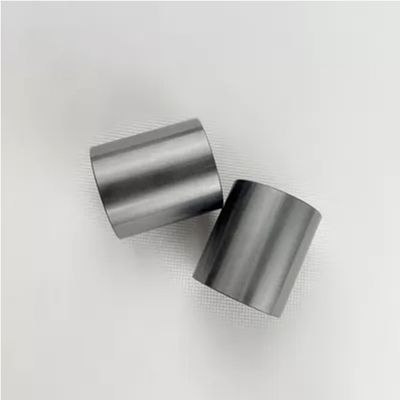

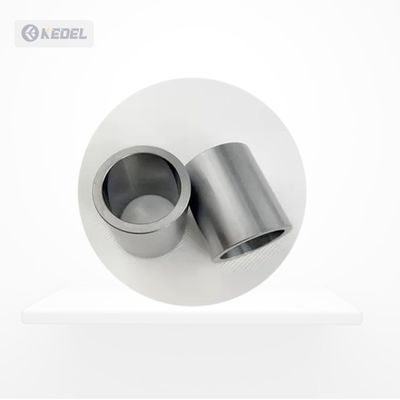

Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment

Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment

Ampliación de imagen :  Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment

Datos del producto:
Lugar de origen: PORCELANA
Pago y Envío Términos:
Cantidad de orden mínima: 5
Precio: $16-65
Contacto

Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment

descripción
Material: Polvo de carburo de tungsteno 100% puro Superficie: Lustroso
Forma: círculo Color: Negro
Calificación: YG8/YG9C/YG11C Densidad: 14.90 g/cm³ (yg6x)
Dureza: 93.0 HRA (YG6X) TRS: 2700 MPa (YG6X)
Porosidad: A02/B00/C00 (YG6X) Tamaño de grano: 0.6-0.8 μm (yg6x)
Composición de WC: 93.5% (yg6x) Composición: 6.0% (yg6x)
Composición de TAC: 0.5% (yg6x) TRS mínimo: 1800 MPa (KDN6)
TRS máximo: 3800 MPa (YG8X)
Resaltar:

100% Pure Tungsten Carbide Powder Seal Ring

,

YG8/YG9C/YG11C Grade Tungsten Carbide Seal Ring

,

Customized Tungsten Carbide Seal Ring

Customized Tungsten Carbide Sealing Ring With High Wear Resistance

Premium tungsten carbide sealing rings designed for oil well equipment and pipeline valve applications, offering exceptional wear resistance and durability.

Product Description
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 0 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 1
Product Parameters
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 2
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC A/B/C Densityg/cm³(±0.1) HardnessHRA(±0.5) TRS Mpa(min) Porosity
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 3 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 4 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 5
Product Details
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 6 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 7
Quality Assurance
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 8
Manufacturing Expertise
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 9
Industry Recognition
Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 10 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 11 Customized Tungsten Carbide Seal Ring with 14.90 g/cm³ Density 93.0 HRA Hardness and 2700 Mpa TRS for Oil Well and Pipeline Valve Equipment 12
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

At Kedel Technology Co., Ltd. in Chengdu, we value every customer relationship. Your satisfaction drives our continuous improvement, and we appreciate your trust in our high-performance tungsten carbide sealing solutions.
